Blaze By Sonance PowerZone series of install power amplifiers are designed to provide affordable, versatile and reliable high performance audio power.
Blaze By Sonance PowerZone series of install power amplifiers are designed to provide affordable, versatile and reliable high performance audio power.
Their ultra compact form factor means the half rack PowerZone are so small and neat they can be installed in spaces where other brands cannot saving valuable space.
All channels deliver high and low impedance loads meaning one amplifier can replace two, that saves costs and installation time. Total power is automatically shared across the output channels enabling the user to use two PowerZone amplifier channels in bridge mode to utilise the power where you need it.

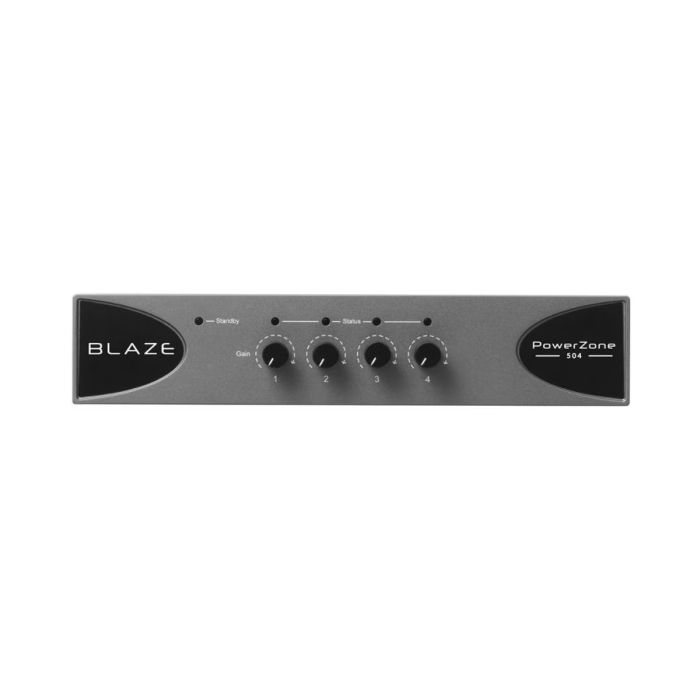

PowerZone amplifiers are easy to configure via the DIP switches that allow you to set up on site as you need and has front panel even has a control lock to stop unwanted changes to your setup.
The GPIO interface enables adding a standard remote control, potentiometer, to the system or triggers to mute the amplifier etc.
Class leading energy efficiency, Energy Star and ErP 1275/2008/EC compliant, means a day to day energy saving and long term low cost of ownership.
Blaze By Sonance PowerZone amplifiers utilise Pascal’s UMAC™ Class D amplifier technology with market proven, ultra reliable U-PRO amp modules.
| Model | PowerZone 252 Aplifier | PowerZone 504 Amplifier | PowerZone 1004 Amplifier |
| Total System Power | 250W | 500W | 1000W |
| Output Power @ 4/8 Ω | 2 x 125W | 4 x 125W | 4 x 250W |
| Output Power @ 70/100V 100V Line Mode is @ -1 dB or ≈ 90 V |
2 x 125W | 4 x 125W | 4 x 250W |
| Powershare, Up to Across channels | 1 x 250W | 2 x 250W | N/A |
| Power | Consumption: 75W Sandby Consumption:< 0.5W |
Consumption: 150W Sandby Consumption:< 0.5W |
Consumption: 300W Sandby Consumption:< 0.5W |
| Rack Size | 1U half width | 1U half width | 1U full width |
| Dimensions | Height: 44.5mm / 1.75" > Width: 220mm / 8.66" Depth: 262mm / 10.31" |
Height: 44.5mm / 1.75" Width: 220mm / 8.66" Depth: 337mm / 13.27" |
Height: 44.5mm / 1.75" Width: 440mm / 17.32" Depth: 292mm / 11.50" |
| Weight | 1.9kg / 4.2lb | 2.4kg / 5.3lb | 3.6kg / 7.9lb |
| Includes | 1 x ½ rack plate extension 2 x ½ rack mounting plates 2 x Rear supports |
1 x ½ rack plate extension 2 x ½ rack mounting plates 2 x Rear supports |
| Manufacturer | Blaze Audio |
|---|---|
| Manufacturer SKU | UBX-888-002 |
