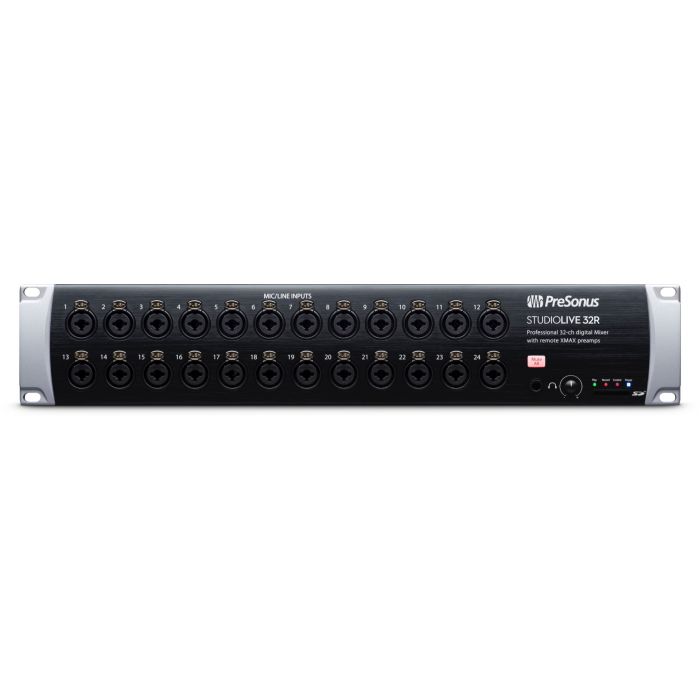

With the StudioLive 32R , Presonus offers a fully programmable 32-channel rack mixer that can also be used as an AVB stagebox for the StudioLive Series III mixing consoles The StudioLive 32R Series III rack mixer is the perfect complement to a StudioLive Series III console / recorder . Since Series III rack mixers and consoles can be networked via AVB , StudioLive 32R can be easily connected to a Series III front-of-house console using a CAT5e or CAT6 Ethernet cable.
The StudioLive 32R can operate in two modes : 1. stagebox mode (the rack mixer serves as a pure input/output unit, operation is completely via the Series III console) or 2. split mode (FOH sound via the Series III console, monitor mix via the rack mixer) .
The following comprehensive software package is included in the scope of delivery:
- UC Surface" control software for OS X, Windows, iPad, Android tablet
- Free monitor app "QMix-UC" for iPhone, iPod Touch and Android smartphones
- Capture" recording software
- DAW-Software "Studio One 3 Artist" and "Studio Magic" Plugin-Suite (for download)
- Presonus StudioLive 32R
Features as a rack mixer:
- operable via Mac, PC, Windows 8/10 touch screens, iPad and Android Tablets (wireless control requires WLAN router)
- Control elements can be distributed on up to four (!) iPads, for example
- full fat channel power of StudioLive Series III consoles
- built-in SD card recorder for stereo recordings and as a player
- onboard USB audio interface (24R, 32R: 40x40 or 16R: 18x18)
- perfectly integrated into DAW Studio One 3
Features as AVB stagebox:
- Connect to StudioLive Series III (FOH) console via Cat5/Cat6 cable
- Ethercon AVB socket with interlock
- Stagebox mode (the rack mixer serves as a pure input/output unit, the operation takes place completely via the Series III console)
- Split mode (FOH sound via the Series III console, monitor mix via the rack mixer)
- Studiolive-32R
Features of the Presonus StudioLive 32R:
- Series III Digital Rack Mixer / AVB Stagebox
- fully programmable 32/4/2 digital rack mixer
- 32 Mic/Line inputs (combo jacks with interlock)
- Stereo aux input (RCA L/R)
- 32 discrete XMAX Class A preamps, 48 V phantom power
- high-quality digital converters (24 bit/48 kHz) with 115 dB dynamic range
- 16 aux sends, 4 audio subgroups, 24 filter DCA groups
- 16 mix outputs (balanced TRS jack), 2 main outputs (XLR L/R)
- Headphone output (6.35 mm stereo jack) with volume control
- "Mute All" button to mute all inputs and outputs
- Integrated SD card recorder (stereo) for recording the main signal and as a player
- 40x40 USB recording interface, 55x55 AVB recording interface
- Fat channel signal processing: polarity, high pass filter, gate/expander with sidechain,
- fully parametric 4-band EQ, compressor with sidechain, limiter, incl. vintage plugins for EQ and compressor
- Fat Channel double assignment, alternative settings can be stored and recalled (A/B)
- 4 master effect processors incl. vintage reverb plug-ins
- Line delay in all inputs and outputs
- fully parametric 6-band EQ in all outputs, 8 graphic EQs (31-band)
- professional presets plus user memory for fat channel, effects and graphic EQ
- 100 full scene memories, 8 quick scene memories, 8 mute groups
- USB port, Ethernet control port, Ethercon AVB audio network port
- Dimensions (WDH): 48,3 x 30,5 x 9,0 cm (19", 2RS)
- weight: 5,0 kg
| Manufacturer | PreSonus |
|---|---|
| Manufacturer SKU | 2779206203 |
