£1,399.00
Usually ships within 5 working days
SKU
DIG23504

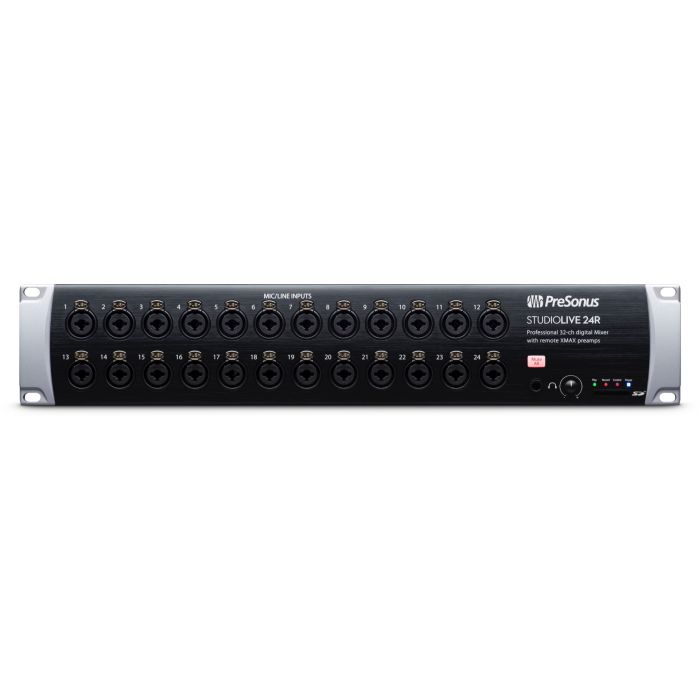

With the StudioLive 24R , Presonus offers a fully programmable 24-channel rack mixer that can also be used as an AVB stagebox for the StudioLive Series III consoles . The StudioLive 24R Series III rack mixer is the perfect complement to a StudioLive Series III console / recorder and can be used as a simple stagebox or a combination of stagebox and monitor mixer . Because Series III rack mixers and consoles can be networked via AVB , StudioLive 24R can be easily connected to a Series III front of house console using a CAT5e or CAT6 Ethernet cable.
The following comprehensive software package is included in the scope of delivery:
- UC Surface" control software for OS X, Windows, iPad, Android tablet
- Free monitor app "QMix-UC" for iPhone, iPod Touch and Android smartphones
- Capture" recording software
- DAW-Software "Studio One 3 Artist" and "Studio Magic" Plugin-Suite (for download)
Features as a rack mixer:
- operable via Mac, PC, Windows 8/10 touch screens, iPad and Android Tablets (wireless control requires WLAN router)
- Control elements can be distributed on up to four (!) iPads, for example
- full fat channel power of StudioLive Series III consoles
- built-in SD card recorder for stereo recordings and as a player
- onboard USB audio interface (24R, 32R: 40x40 or 16R: 18x18)
- perfectly integrated into DAW Studio One 3
Features as AVB stagebox:
- Connect to StudioLive Series III (FOH) console via Cat5/Cat6 cable
- Ethercon AVB socket with interlock
- Stagebox mode (the rack mixer serves as a pure input/output unit, the operation takes place completely via the Series III console)
- Split mode (FOH sound via the Series III console, monitor mix via the rack mixer)
Main Features:
- Series III Digital Rack Mixer / AVB Stagebox
- fully programmable 24/4/2 digital rack mixer
- 24/14 AVB Stagebox for StudioLive Series III consoles
- internal 32-channel (24 analog inputs, 8 digital channels)
- 24 Mic/Line inputs (combo jacks with interlock)
- Stereo aux input (RCA L/R)
- 24 discrete XMAX Class A preamps, 48 V phantom power
- high-quality digital converters (24 bit/48 kHz) with 115 dB dynamic range
- 16 aux sends, 4 audio subgroups, 24 filter DCA groups
- 12 mix outputs (balanced TRS jack), 2 main outputs (XLR L/R)
- Headphone output (6.35 mm stereo jack) with volume control
- "Mute All" button to mute all inputs and outputs
- integrated SD card recorder (stereo) for recording the main signal and as a player
- 40x40 USB recording interface, 55x55 AVB recording interface
- Fat channel signal processing: polarity, high pass filter, gate/expander with sidechain, fully parametric 4-band EQ, compressor with sidechain, limiter, incl. vintage plug-ins for EQ and compressor
- Fat Channel double assignment, alternative settings can be stored and recalled (A/B)
- 4 master effect processors incl. vintage reverb plug-ins
- Line delay in all inputs and outputs
- fully parametric 6-band EQ in all outputs, 8 graphic EQs (31-band)
- professional presets plus user memory for fat channel, effects and graphic EQ
- 100 full scene memories, 8 quick scene memories, 8 mute groups
- USB port, Ethernet control port, Ethercon AVB audio network port
- UC Surface" control software for OS X, Windows, iPad, Android tablet
- Free monitor app "QMix-UC" for iPhone, iPod Touch and Android smartphones
- incl. recording software "Capture", DAW software "Studio One 3 Artist" and "Studio Magic" Plugin-Suite (for download)
- Dimensions (WDH): 48,3 x 30,5 x 9,0 cm (19", 2RS)
- weight: 4,9 kg
| Manufacturer | PreSonus |
|---|---|
| Manufacturer SKU | 2779206202 |
