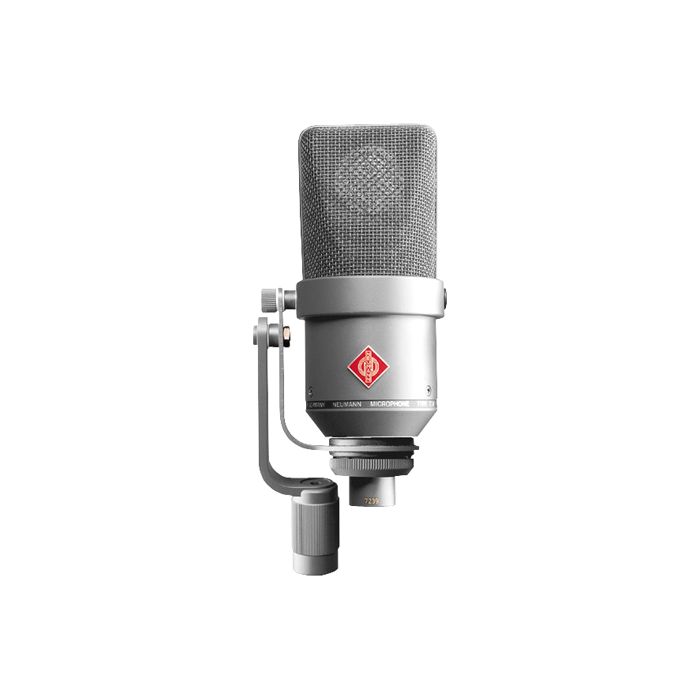

Large diaphragm microphone with 5 polar patterns
The first Neumann mic with transformerless technology, featuring 5 directional characteristics, selectable at the mic or remotely, in addition to pre-attenuation and low-cut filter switches. The excellent sound pressure handling capability makes this mic ideal for recording wind instruments, for example.
The TLM 170 R was the first microphone to use the successful FET 100 technology. Along with a balanced, transformerless output stage it features extremely low self-noise and an impressive dynamic range.
Five directional characteristics are selectable by means of a rotary switch. In the sixth position, marked "R", the directional patterns can be controlled remotely with the N 248 power supply. There is no special cable necessary for this purpose.
The microphone has at its rear a 10 dB attenuation switch for extremely high sound pressure levels, and a high-pass filter to suppress structure born noise.
The Neumann TLM 170 R main features include:
- Acoustical operating principle : Pressure gradient transducer
- Directional pattern : Omnidirectional, wide angle cardioid, cardioid, hypercardioid, figure-8
- Frequency range : 20 Hz ... 20 kHz
- Sensitivity at 1 kHz into 1 kohm : 8 mV/Pa
- Rated impedance : 50 ohms
- Rated load impedance : 1 kohms
- Equivalent noise level, CCIR1) : 26 dB
- Equivalent noise level, A-weighted1) : 14 dB-A
- Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL) : 68 dB
- Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL) : 80 dB
- Maximum SPL for THD 0.5%2) : 144 dB
- Maximum SPL for THD 0.5% with preattenuation2) : 154 dB
- Maximum output voltage : 10 dBu
- Dynamic range of the microphone amplifier (A-weighted) : 130 dB
- Supply voltage (P48, IEC 61938) : 48 V ± 4 V
- Current consumption (P48, IEC 61938) : 3 mA
- Matching connector : XLR3F
