- Powerful tri-amplified midfield studio monitor – high-precision dispersion with tremendous sound level reserves.
- Computer-modeled cabinet design using Low Resonance Integral Molding (LRIM™) materials
- Extraordinary bass depth (26 Hz) with high sound pressure (122.4 dB)
- Precise dispersion in the midrange and high frequencies
- As a stereo system with KH 750 DSP and optional tools, controllable and alignable to the room
The KH 420 is designed for use as a mid-field or main monitor in stereo and multi-channel systems. It can be used in project, music, broadcast centers, and post production studios for tracking, mixing, and mastering.

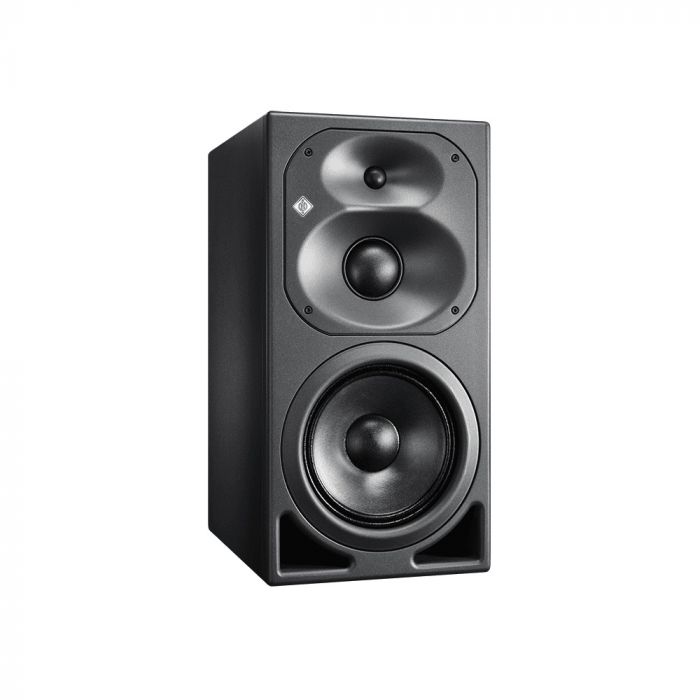

The KH 420 three-way analog active studio monitor features a Mathematically Modeled Dispersion Waveguide (MMD), flexible acoustical controls, various input options, analog class-AB amplifiers, and an extensive range of mounting hardware. This allows the loudspeaker to be used in diverse acoustical conditions, with any source equipment and in a wide variety of physical locations. The KH 420 represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible.
Features
- 10" woofer, 3" soft dome midrange, 1" alloy fabric dome tweeter and protective grille
- 330 + 140 + 140 W class AB-amplifiers with thermal protection
- Vented enclosure with rotatable Mathematically Modeled Dispersion (MMD) Waveguide
- Frequency response: 26 Hz - 22 kHz, (-3 dB)
- Maximum SPL: 122.4 dB at 1m
- Input gain control, output level control, ground lift
- Fourth-order crossover and 4-position bass, low-mid and treble acoustical controls, and parametric EQ
- Self-generated noise level <0 dB(A) at 1 m
- Independent thermo limiters for woofer, midrange dome and tweeter. Woofer peak and excursion limiters.
- Two-color dimmable Neumann logo
- Magnetic shielding
- XLR-balanced analog input
- Optional digital inputs with delay feature
- Universal switched-mode power supply
- Dimensions: 645 x 330 x 444 mm (25 3/8" x 13" x 17 1/2") (HxWxD)
- Weight: 35 kg (77 lbs 3 oz)
| Manufacturer | Neumann |
|---|---|
| Manufacturer SKU | 505988 |
